With so many moulds on offer, it helps to make sure you're picking the right one for your load. The range of moulds Lee has on offer can appear daunting at first, but with this handy guide you're certain to find the mould you're looking for. There's a few different pieces of information for each bullet, and each will help you choose the right bullet.

Rifle Bullet Moulds

This chart is for moulds casting for rifle bullets, and is sufficient for most popular calibres such as .303, .308 and .223. Note that the name of the bullet is not necessarily indicative of the actual calibre of the bullet, for example .303 British actually uses a .312'' diameter bullet.

Click here for our full range of rifle bullet moulds from LEE.

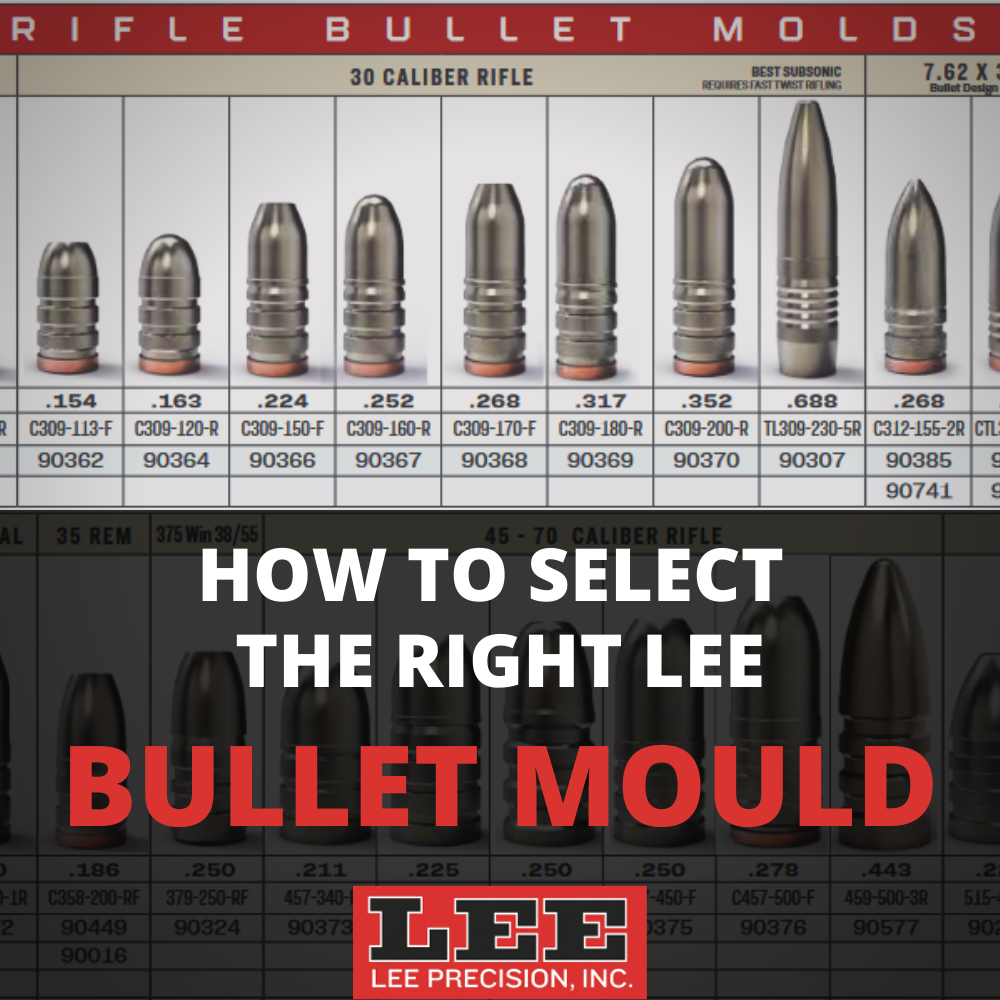

Lee Rifle Bullet Moulds

The Chart Explained:

Calibre & Image

At the top of the chart is the rough calibre of each mould. Some are listed as the exact calibre they're to be loaded for, such as 7.62x39, some are more generic, such as .30, as these will fit numerous calibres. The exact diameter is also listed in the mould description, so you can double check you're getting the right one

Next is the image, which is pretty self explanatory. This is simply what the bullet will look like when cast, with crimping grooves, profile, etc. Note that some bullets will take a gas check.

Ballistic Coefficient

This is simply how efficiently the bullet moves through the air, or, how easily the bullet can overcome air resistance. Most shooters will not concern themselves with this number unless it is for a specific application, such as hunting or long range shooting.

Mould Designation

This designation (for example C225-55-RF) is Lee's designation of the mould, and contains most of the information needed to determine the type of bullet it will cast. Let's look at each part in turn

C/TL 225-55- RF

The C here denotes whether the bullet requires a gas check, simple as that.

A TL denotes that the bullet has micro bands cast into it, as opposed to traditional lubrication grooves. Micro banded bullets generally require no sizing.

C/TL 225-55- RF

This is perhaps the most important piece of information contained. The first number denotes the calibre, so .225'' in this case. The second number denotes the weight in grains, so 55 grains here.

C/TL 225-55- RF

The final one or two characters denote the bullet nose shape, in this case RF for round with a flat point. All are listed below

WC - Wadcutter

SWC - Semi Wadcutter

RF - Round with flat

R - 1 ogive radius

2R - 2 ogive radius

TC - Truncated Cone

Double/6 Cavity

This is simply whether the mould will cast two bullets at a time, or six, and the number corresponding for each. All Lee moulds are double cavity, but some are also available as a six cavity mould. Double cavity moulds come with handles included, separate handles are required for six cavity moulds. Click here to view the handles you will require for the 6 Cavity Moulds.

And that's all there is to it for the designation. Complicated at first, but easy once you know what you're looking for. With this information and the picture, you have a clear idea of what type of bullet each mould will cast.

Pistol Bullet Moulds

The below chart is for pistol bullets. Note that the name of the bullet is not necessarily indicative of the actual calibre of the bullet. For example, bullets for a .38 Special actually use a .358'' diameter bullet.

Click here for our full range of pistol bullet moulds from LEE

Lee Pistol Bullet Moulds
